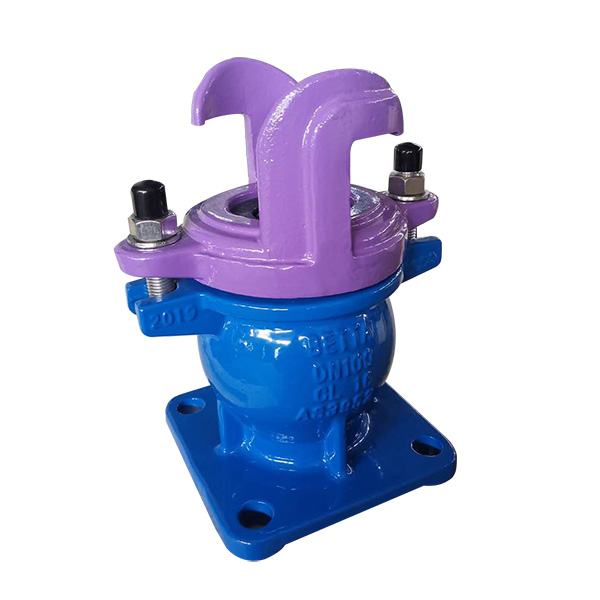

BETTA SPRING HYDRANT, PN16
To AS 3952, Blue/Purple yoke, DN80~DN100
BETTA spring hydrant for fire protection services, water and neutral liquid applications
SP42X1-16QConnectionFlangeMaterialDuctile IronDNDN100~150PNPN16

Test/Approvals:

Hydraulic test according to AS 3952
AS 3952 Registration No. 22026

Standards:

Designed and certified according to AS 3952
Comply with AS 4020
Coating to AS 4158
Flange and drilling to AS 4087 Fig.B5 PN16

Features:

  • Ductile iron grade of BS500-7 body and yoke for high strength and impact resistance
  • Fusion bonded epoxy coating to AS4158 approved and AS 4020 compliance
  • For fire protection services, water and neutral liquid applications
  • All fasteners of S.S.316 for corrosion resistance
  • Option of yoke in Lilac color for recycled water applications

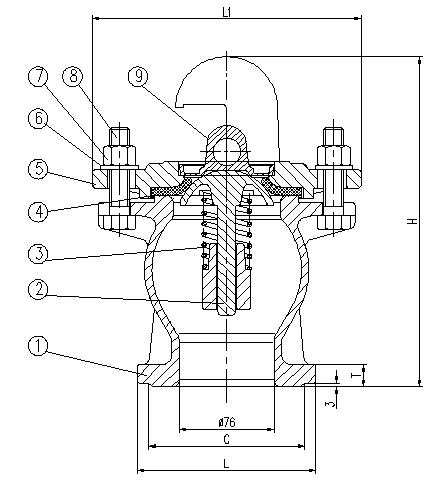

Components tree:

1 Body Ductile Iron BS500-7
2 Dome Brass C48600
3 Spring Stainless Steel 304
4 Seal gasket Rubber EPDM
5 Yoke Ductile Iron BS500-7
6 Bolt washer Stainless Steel 316
7 Bolt nut Stainless Steel 316
8 Bolt Stainless Steel 316
9 Dustproof cover Plastic PVC

Reference nos. and dimensions:

BETTA ref. no. DN
mm 		H
mm 		L
mm 		C
mm 		T
mm 		L1
mm 		Theoretical
Weight/Kg
80SP42X1-16Q 80 264 143 122 18 216 8.5
100SP42X1-16Q 100 264 166 156 20 216 9.5
